SLOSH PARADE - proto
6 variable squarewave
oscillators and a variable resonant low pass filter

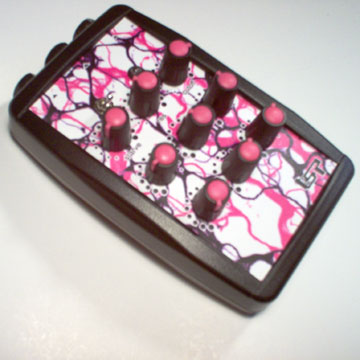

click
image to view larger
::: SOLD
::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::
this box contains 6 squarewave oscillators. there
is a separate control for each of their pitches as
well as a master starve control. the oscillators come
from the PARADE parasite inside and each of the 6 have
a slightly different variable pitch range from super
slow clicky pulses to higher then humans can hear for
some. there is also a DRENCH LPF
parasite in there that is automatically connected to
the parades output. you can also use the low pass by
itself by simply inserting a plug in the input ( far
right ). this will switch out the parade and replace
it with whatever you just plugged in so you can use
them both independently. in order to get them to work
together i had to modify the input of the drench to
work with lower levels so you may need to lower high
volume input sources or they may distort, unless you
like it of course. as a result the drench’s output
is also a little lower so you might want to plug it
into something that will amp it a tiny bit depending
on what you are doing. the starve control only effects
the parade. there was not enough space to add a volume
control let alone another starve, this thing is packed

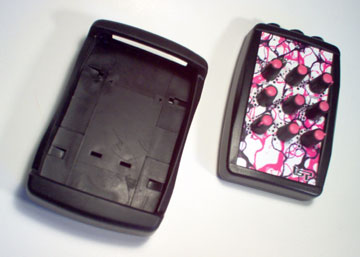

full. its housed in a new ABS handheld case which has
a 9v battery compartment built in to the back and come
with a removable shock resistant soft rubber sleeve

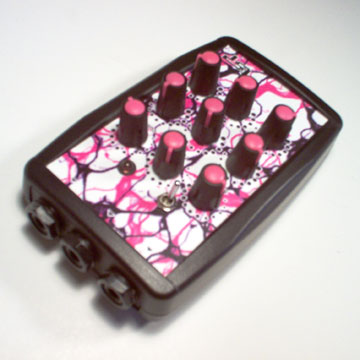

that you can use or not. there is a pink led and main
power toggle on the front panel and three jacks on
the back panel. left to right its the main parade output,
then the drench output and then the drench input.
the only things that are labeled as the starve, cutoff
and resonance controls. the rest are all the pitch /
rate controls for each oscillator
::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::
SIX SEPERATE PITCH / RATE CONTROLS, STARVE,
CUTOFF, RESONANCE and POWER
::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
average size is about 6mg - all of
these are done with the parade running through the
drench. for samples of each one alone look here PARADE and
here DRENCH
these samples are just me hitting record
and messing around in an attempt the show you the full
range of options. they are all from one single pass
that i just cut up into segments. no effects or editing
was done to anything at all. people that make samples
with reverb or delay are fucking morons that are trying
to hide or exaggerate their results.
::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
heavyduty ABS
handheld case - with removable shock resistant
soft rubber sleeve |
single 9V battery
operation ( not included ) |
extensively
tested before shipping |
2 ¼” output
jacks - 1 ¼” input jack
( mono ) |
current required
- only 3ma required. a single 9v will
last about 9 solid days |
total dimensions
- 5.75 in. x 3.5 in. x 1.75 in. |
professionally
manufactured PCB |
1 year parts and labor warranty *
conditional - bending the actual
device voids it
|
| |
| |
please feel free to contact me
if you have any questions or visit the
forum here
|
| |
|
