DRENCH

variable resonant low pass filter

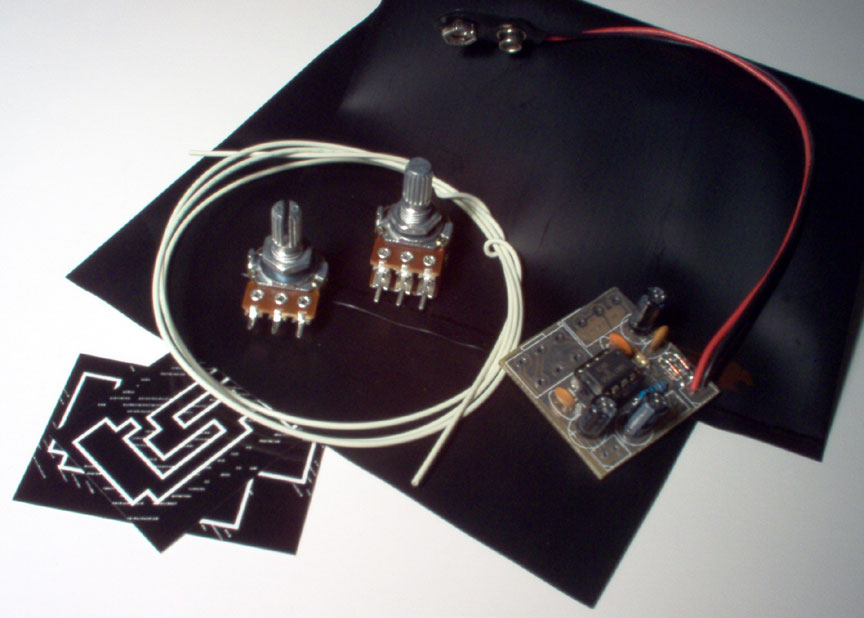

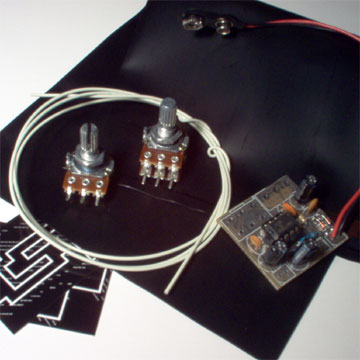

click image to view larger

price: $29 ::: SOLD OUT

::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

this is a resonant low pass filter with a variable resonance and a fairly wide cutoff range. the high resonance will also allow it to self-oscillate and produce a near perfect linear sinewave output oscillation for which the cutoff then becomes the pitch control. the range, though its very wide as it is now, can be extended to reach further down into the sub bass range very simply. you see i could only find 500k dual 16mm pcb mounted knurled pots but if you can find a dual 1M pot and you use that instead then the range will go down below human hearing. i used a monster dual 3M pot to test this and it works without a hitch. also i should note that this is designed for line level use so you can plug a drum machine or synth directly into it. if you are using a lower level device then you should use a booster or pre amp before it. not much else to say. there is an input and output, both with ground connections available so you can just add a couple jacks and then stuff it in a box and use it right away. also using different voltage power supplies will increase or decrease the range of operation respectively. so please take that into account. 9v recommended.

::: INSTRUCTIONS :::

::: WIRING TUTORIALS :::

::: ANSWERS :::

::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

CUTOFF and RESONANCE

::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

::: SAMPLE :::	rough sweeping around the cutoff and res with a drum sample loop provided by dispyz

::: SAMPLE :::	quick / dirty casio mt-40 sample to give you an idea. the drums are pretty limited in frequency with not much bass at all so keep that in mind.

::: SAMPLE :::	self oscillation

::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

hand assembled
fully tested before shipping
wide power supply range from 3 volts DC to 15 volts DC
current required -

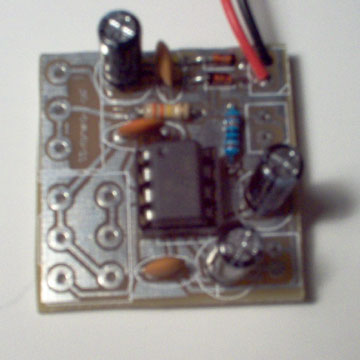

professionally manufactured PCB, but cut by hand
length and width dimensions—1-1/4” x 1-1/4” or 32mm x 32mm
height dimensions - without pots 7/16" or 15mm / with pots 15/16" or 24mm
shipped safely in a static bag
1 year parts and labor warranty * conditional - bending the actual device voids it

please feel free to contact me if you have any questions or visit the forum here
