the SLOSH BOX - ST proto

stereo variable resonant low pass filter box

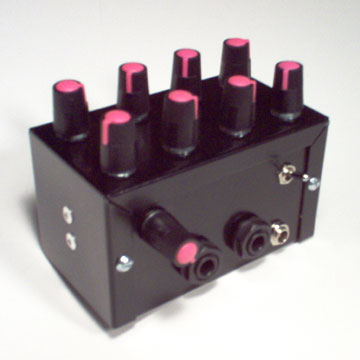

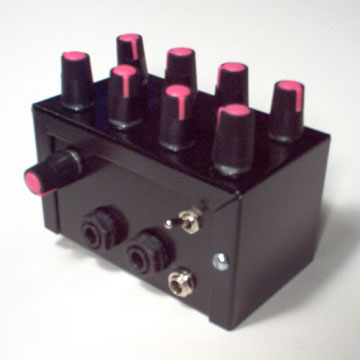

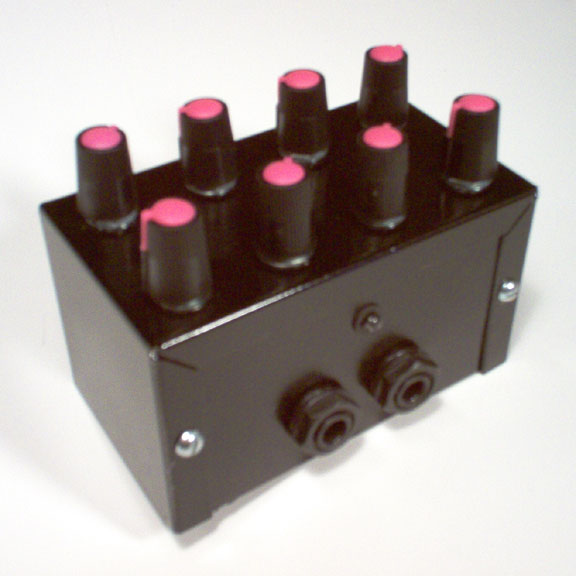

click image to view larger

::: SOLD

::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

this box contains two separate drench parasites, which are all analog resonant low pass filters that i've added some extra features too. each channel has an input volume control, cutoff, resonance, output volume and its own input and out jack. there is also a master starve pot for adding graininess and distortion to everything. i've also added a main power input jack ( 2.1mm ) so you can use a wall adaptor ( keep it under 15vdc ), a main power toggle switch, a pink LED and an internal 9v battery clip. adding a battery inside is tough at best. i'd suggest that you don't bother trying. it ended up being a lot more crapped in there then i had expected. the paint on the case is not going to last long.

notice: the original paint was almost like a grey plastic coating ( though its not the usual shrink wrap that these things arrive in ) so that means the paint is not sticking that well. if you drag your finger nail across it it will scratch the paint. i knew this from the beginning and like the idea that this thing will get really fucked up looking over time, so keep that in mind while buying it!

if you didn't read that you will regret it!

::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

INPUT VOLUME, CUTOFF, RESONANCE, OUTPUT VOLUME, STARVE and POWER

the controls are mirrored - the bottom far left and right are the inputs, top far left and right are outputs, bottom center left and right are the cutoffs, top left and right are res

::: SAMPLES ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

these are DRENCH samples but are the same thing minus the starve which is just analog distortion not glitchy madness

::: SAMPLE :::	rough sweeping around the cutoff and res with a drum sample loop provided by dispyz

::: SAMPLE :::	quick / dirty casio mt-40 sample to give you an idea. the drums are pretty limited in frequency with not much bass at all so keep that in mind.

::: SAMPLE :::	self oscillation

::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

metal utility case
single 9V battery operation ( not included )
wide power supply range, 2.1mm power jack ( center negative ) do not exceed 15vDC !!!
extensively tested before shipping
2 ¼” input jacks - 2 ¼” output jacks ( mono )
current required - only 2ma required. a single 9v will last about 9 solid days
dimensions: 4 in. x 2.25 in. x 2.25 in.
professionally manufactured PCBs, but cut by hand
1 year parts and labor warranty * conditional - bending the actual device voids it


please feel free to contact me if you have any questions or visit the forum here
