SHUDDER

variable multi-shape DC LFO

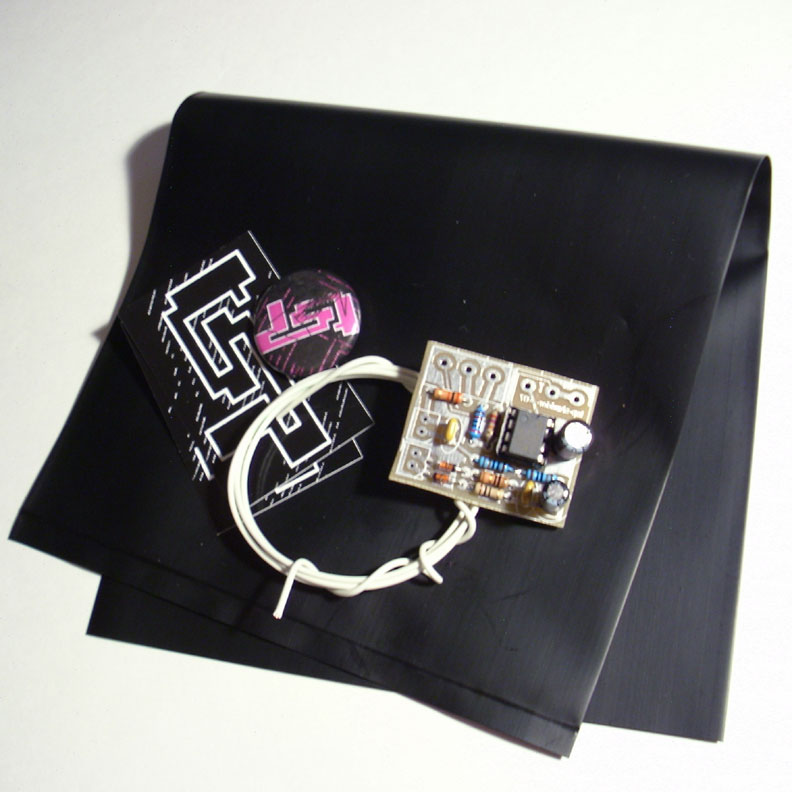

click image to view larger

  price:  $19   ::: SOLD OUT

 ::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

NO LONGER INCLUDES POTS OR BATTERY CLIP

shudder is a simple little variable multi-shape DC LFO intended for use with CONSTANT, CLATTER, FALTER, and just about anything else you might have that will respond to its voltage range. the focus for it was on its very slow and smooth sweeping rate which is mostly below audible range and not found in any other parasite so far. the shape is not perfect at every frequency.

::: INSTRUCTIONS :::
:::  WIRING TUTORIALS :::
:::  ANSWERS :::

 ::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

RATE, DEPTH, and SHAPE

 ::: PARTS REQUIRED :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

20K pot, 100K pot and a power source - 9v recommended.

 ::: DETAILS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

hand assembled

fully tested before shipping
wide power supply range from 4.5 volts DC to 15 volts DC
professionally manufactured PCB, but cut by hand
length and width dimensions—1-3/8” x 1-1/4” or 35mm x 30mm
height dimensions - without pots 7/16" or 15mm / with pots 15/16" or 24mm
shipped safely in a static bag

1 year parts and labor warranty * conditional - bending the actual device voids it



please feel free to contact me if you have any questions or visit the forum here
