parallel - 001

bent squarewave oscillator and real analog ring modulator

::: SOLD

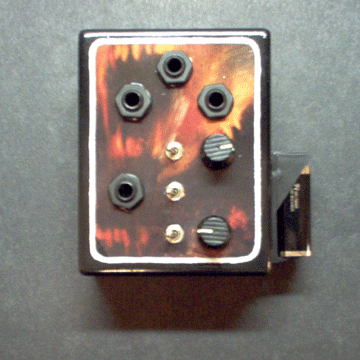

the top section is the passive ring mod (same as the mingrod but no octave up) . left to right the connections are carrier in, modulator in, and output. though the input and outputs are interchangeable. made with hand matched components for minimal signal bleed. being passive, if you are to use a low level device like a guitar, you will need to increase the volume somehow. you can use a distortion pedal, mixer channel, booster etc... line level devices yield the best results.

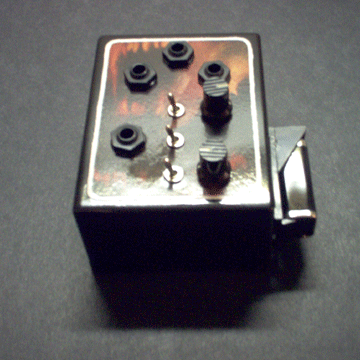

the bottom section is the bent square wave oscillator. controls from left to right read: output, top switch is power, middle is a pseudo ramp wave shape bend, the lowest is a range extender bend, top knob is volume and the lower is pitch. it has a very wide range, extending from a slow square wave metronome click and rises up beyond human hearing. it is capable of delivering CV over a pretty limited range with the volume set to about 9 o'clock. custom paint (with some tiny flaws in the gloss), graphics are sort of abstract demon-like mouths i think, prototype logo on the bottom of a turtle with a swirl in the shell. aluminum enclosure. external 9v battery compartment. battery included.

the parallel design is completely patchable so that you can use the two devices separately or together.

notice: devices capable of very high frequencies have been known to destroy speakers and even to cause fires if left running for an extended period of time. i can not be held responsible for any damage done.

sample ::: just the osc sweeping - no ring mod

sample ::: osc and rdaio ring mod part 1

sample ::: osc and rdaio ring mod part 2

sample ::: osc and 80's drum machine demo
