bleak mixer

passive analog summing mixer

click image to view larger

SOLD OUT

 ::: DESCRIPTION :::::::::::::::::::::::::::::::::::::::::::::::::::::

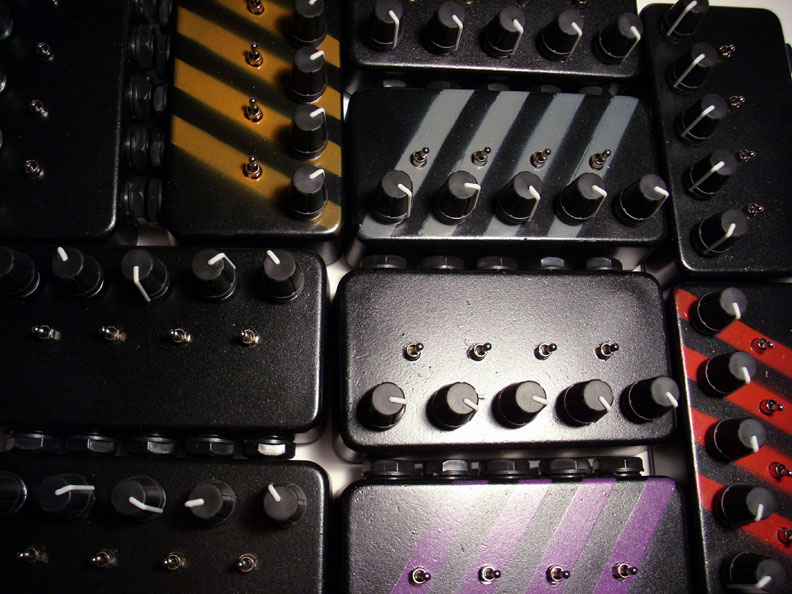

this is a very compact four channel passive analog mono mixer with mutes and volume controls for each channel along with a master volume control. it can be used to process either audio or control voltages and it can be used backwards as a splitter. being a passive design means that it does not impart any "color" or filtering of any kind to what its processing and yes you can use this as an analog summing buss with your computer. it is the same design used in devices costing 10 times as much. being passive also means that it doesn't require a power source but because of that it may require a slight amplification after the main output to bring it back to up the desired level, measuring it during audio and CV use showed a nearly 50% drop in level. and no the mutes do not pop when used. there are four cases with different colored diagonal stencils used. they are rather slapdash, orange, gray, purple and red. the rest are all just black

 ::: CONTROLS :::::::::::::::::::::::::::::::::::::::::::::::::::::::::

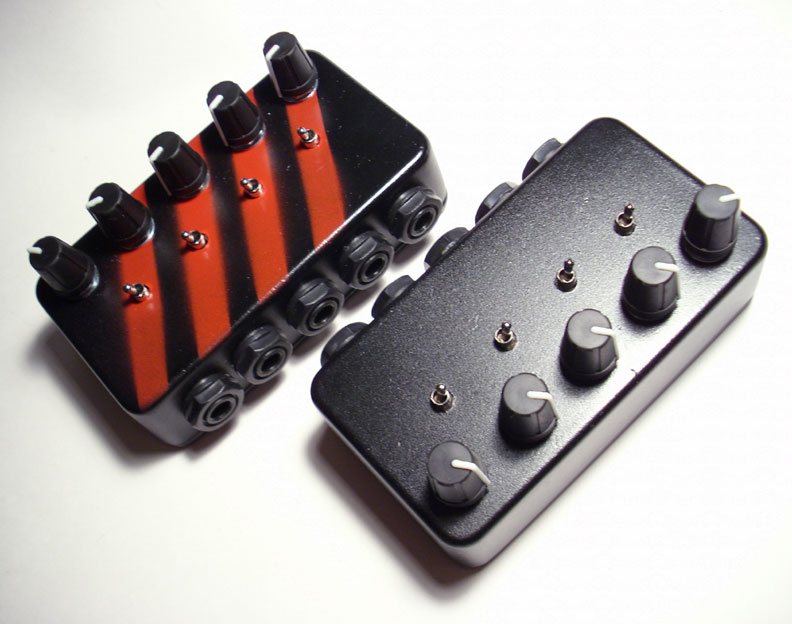

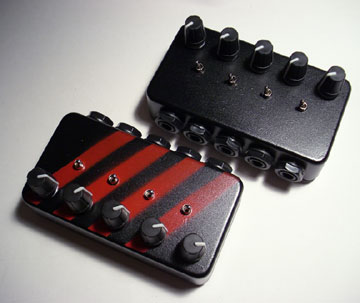

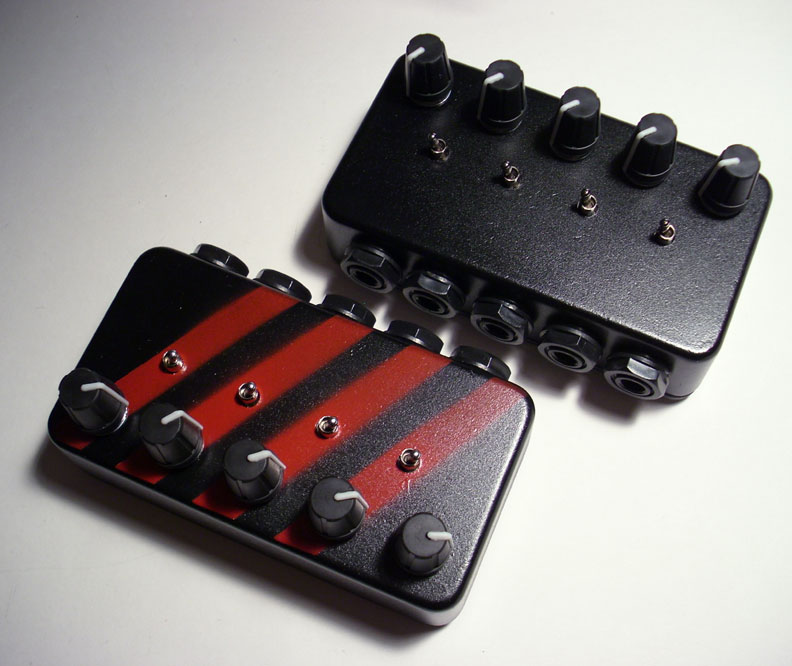

channel attenuators: reading from left to right are the 4 input volume controls

mutes: diagonal up and to the right is each channel's mute switch

main attenuator:  far right knob is the main output volume

i/o jacks:  each jack is in line with it's knob
