bleak WS

passive variable waveshaper

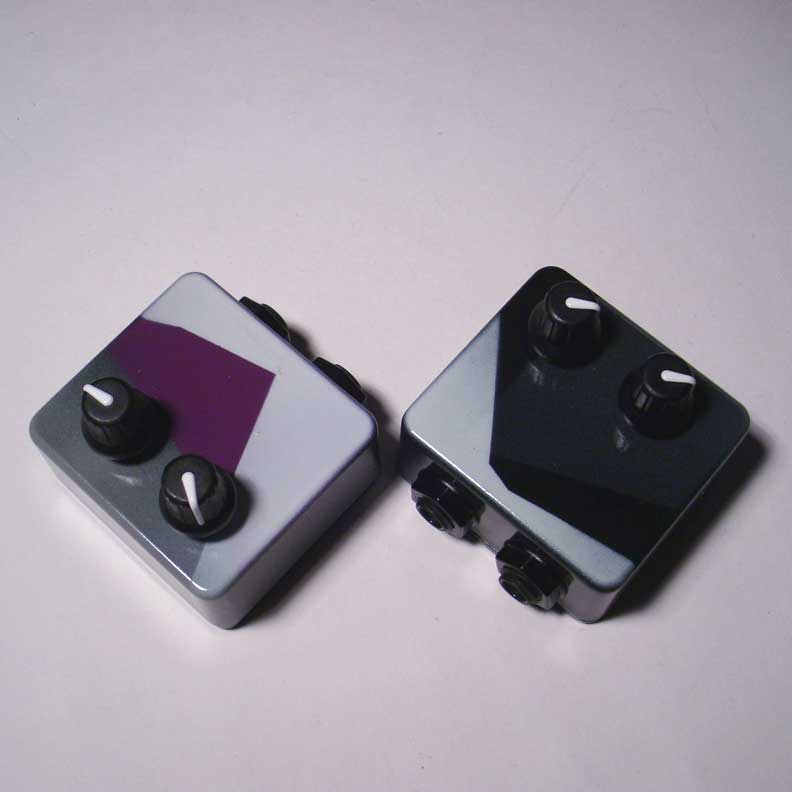

click image to view larger

sold out

'///. DESCRIPTION .\\\\\\\\\\\\\\\\\\\\\\\\'

this is a variable passive device intended to be used as an analog waveshaper which can aggressively distort an active source. the simple filter is intended more for shaping purposes then standard use. being passive there is a small volume drop

.\\\\' CONTROL '///////////////////////////////////////////////////////.

shape knob-right: when this knob is centered the effect is clean, when turned to either side it will clip off more and more of either the top or bottom of the wave. variable rectification

filter knob-left: a simple limited range low pass filter that also alters how aggressive the breakup of the signal is

input and output jacks: the inputs and outputs are interchangeable ( mono / TS )

\\\\' NOTES '////////

the orange and white bled

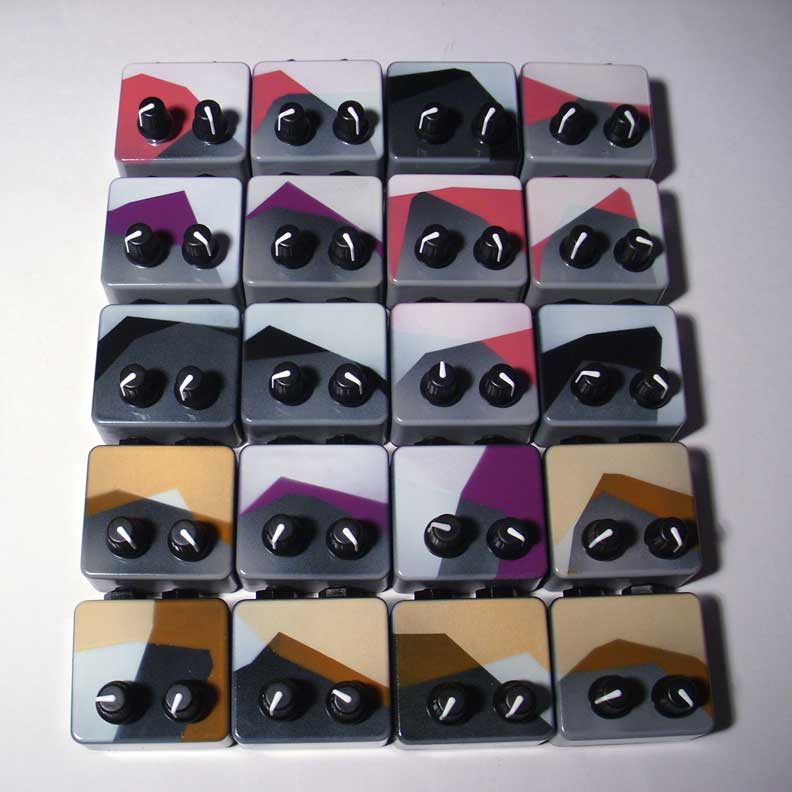

i have a couple extra cases made so there will be another 4 of these at some point

all pcbs have been hand printed by alex of getlofi – designed, cut and drilled by me

\\\\' SAMPLES '//////////////////////

a SAMPLE	a little something from adrian d. this file has the right channel clean so you can get an honest comparison

b SAMPLE	same thing but this verison has the effect on both channels

SAMPLE	some of pauls drums. this file has the right channel clean so you can get an honest comparison

'/////////////////////////////////////////////.

each one is handmade
extensively tested before shipping
case spray painted - graphics imperfect spray painted stencils - poly coated and baked
aluminum enclosure - dimensions - 2.1 in. x 2.35 in.
input and output ¼” jacks ( mono / TS )
3 year warranty - covering both parts and labor

please feel free to contact me if you have any questions or visit the forum here
