bleak - euro

click image to view larger

price $25 - 35



DESCRIPTION .\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\'

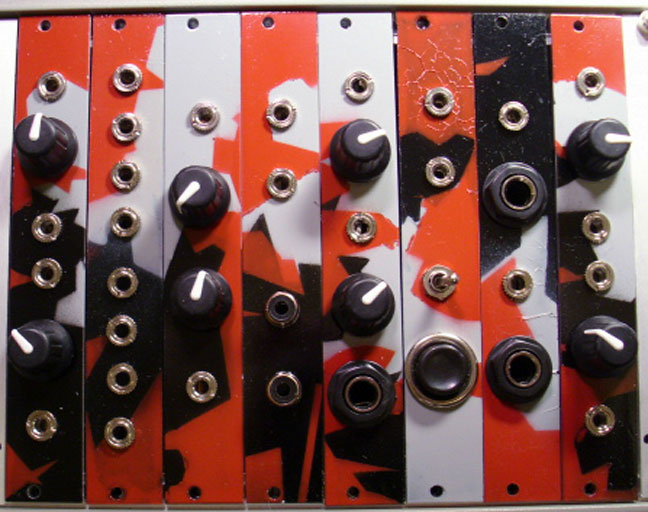

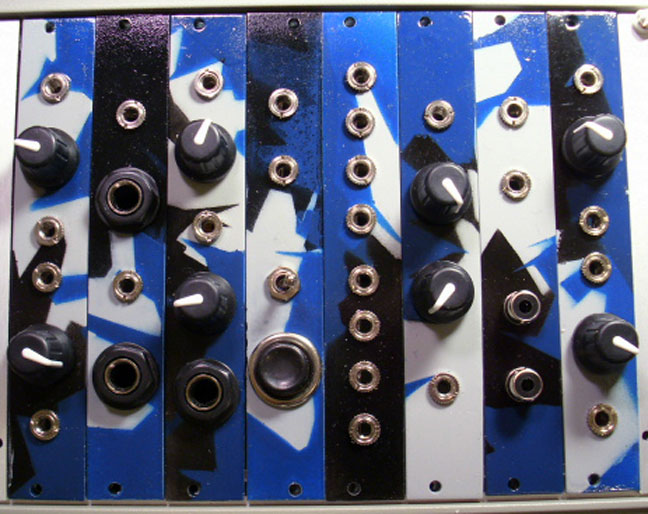

the bleaks are passive (not powered) utility modules designed to fill in the gaps of an existing euro system. each one is entirely handmade, they started as a blank plexi sheet and i did everything else by hand. each of the 4hp modules are available in red, blue, green, and purple with a full set of each module available in red and blue. the blue set contains only # 1 modules. the red set contains only # 2 modules. there will also be a seven piece set available soon made using wood panels

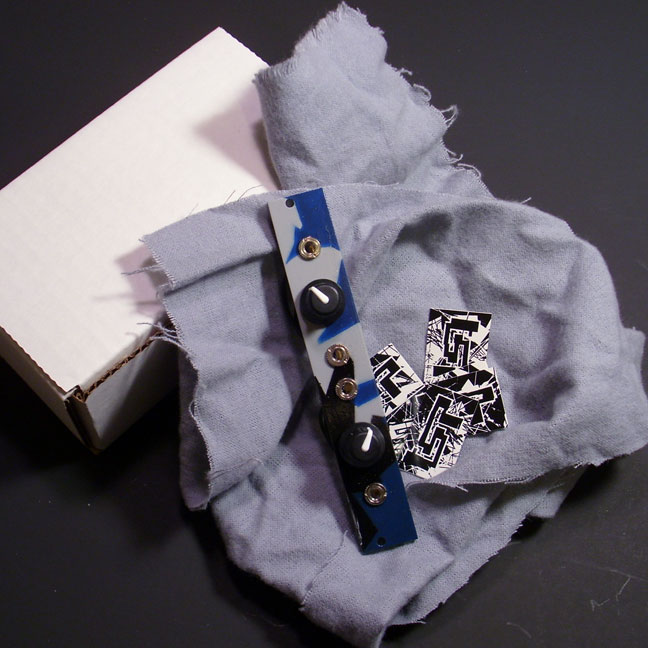

ATTEN - a pair of variable attenuators [ 11 made ]

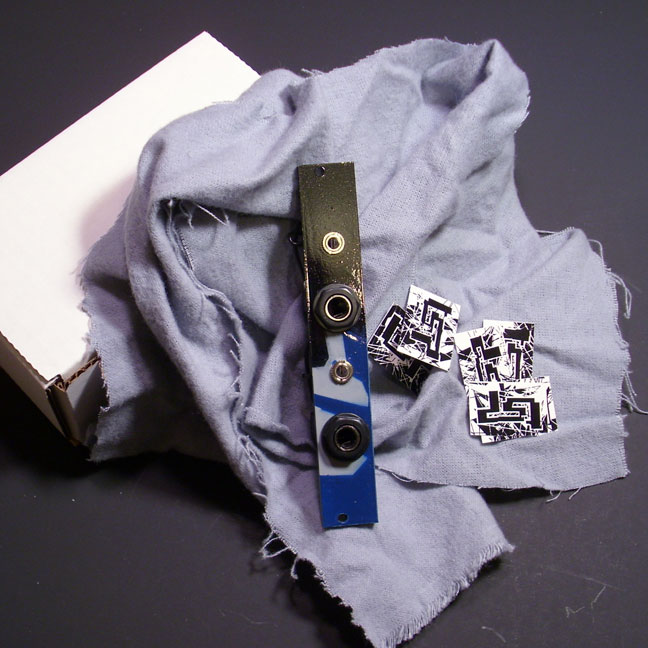

CONVERT - is a dual 3.5 - 1/4" jack converter [ 7 made ]

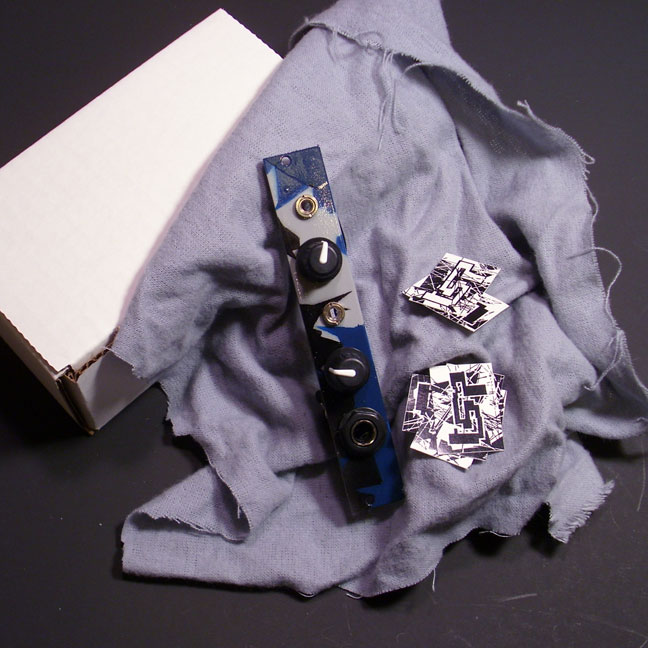

IMP OUT- attenuator with additional 1/4 jack and variable impedance. used to connect to external hardware [ 10 made ]

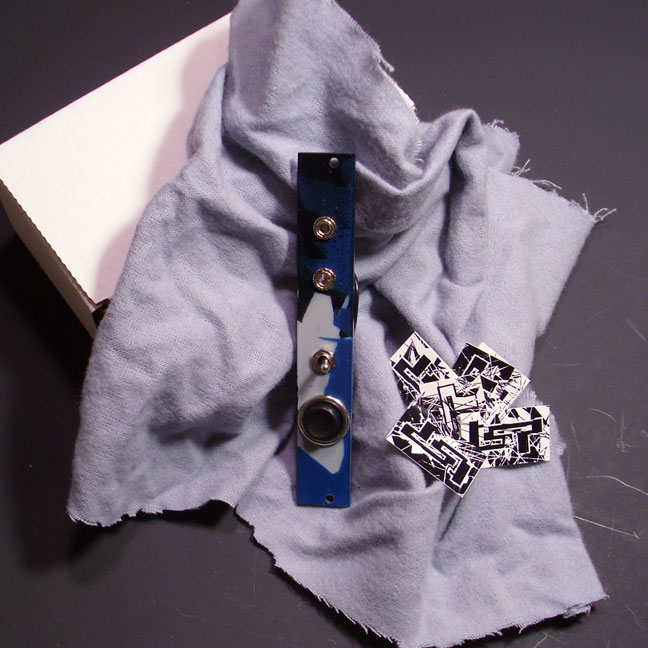

PUSH BUTTON - push button and hold mute. this is a push 'ON' button that allows you to 'play' whatever you send through it. toggle hold as well [ 11 made ]

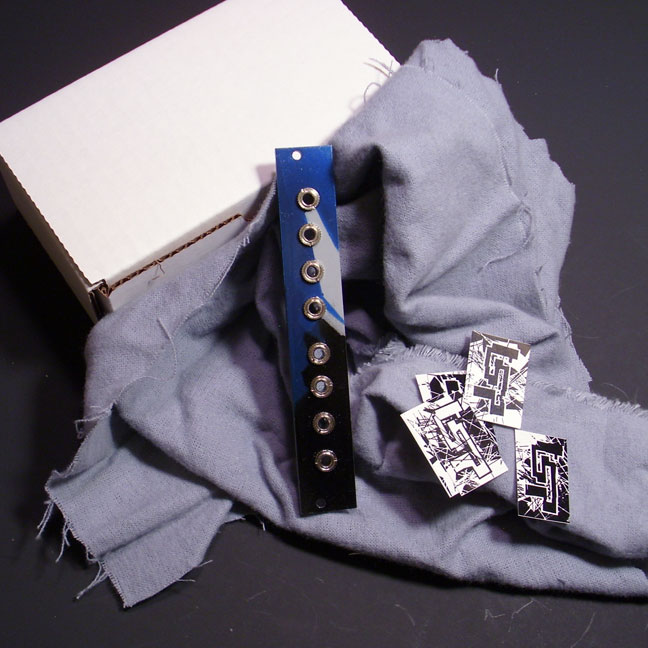

MULT - dual four point multiple normaled in the center to allow 7 points max. jack is marked with white arrow on unit [ 8 made ]

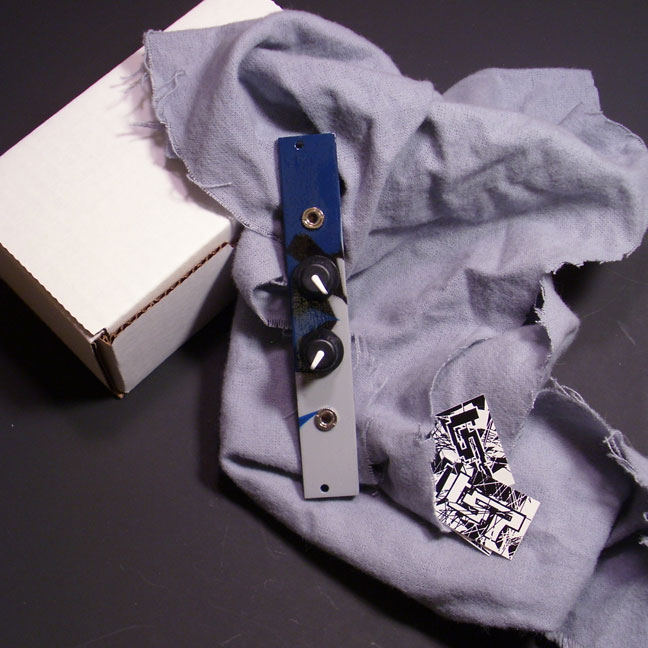

RECTIF - this is for a variable passive rectifier that is followed by a low pass filter allowing for more breakup [ 9 made ]

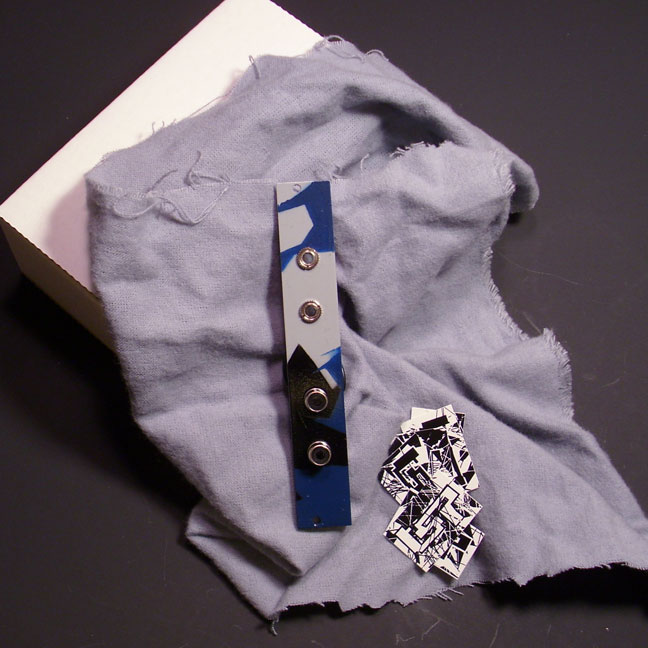

CONVERTrca - two 3.5 to rca jack converters [ 5 made ]

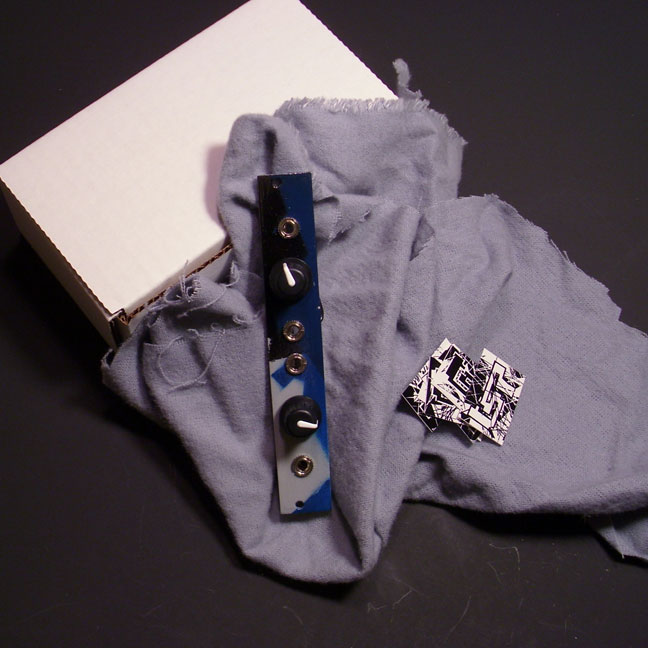

LOWPASS - two variable passive low pass filters [ 10 made ]





.\\\\\ DETAILS \\\\\\\\\\\\\\\\\\\\\\\\\'

each is handmade and numbered internally
extensively tested before shipping
units are passive - no power required
entirely hand wired - point to point
spray painted panels, lacquer coated for scratch resistance
dimensions - euro 4hp


1 year warranty |   parts and labor. warranty valid for original owner only. does not cover cosmetics. any attempt to circuit bend, alter or dismantle the device in any way may instantly void the warranty, this decision is entirely mine. all shipping costs for anything not under warranty will be the owners responsibly

please feel free to contact me if you have any questions or visit the forum
